Product Details ＋

80 PLUS Gold certified for lower power consumption, less noise and cooler temperatures.

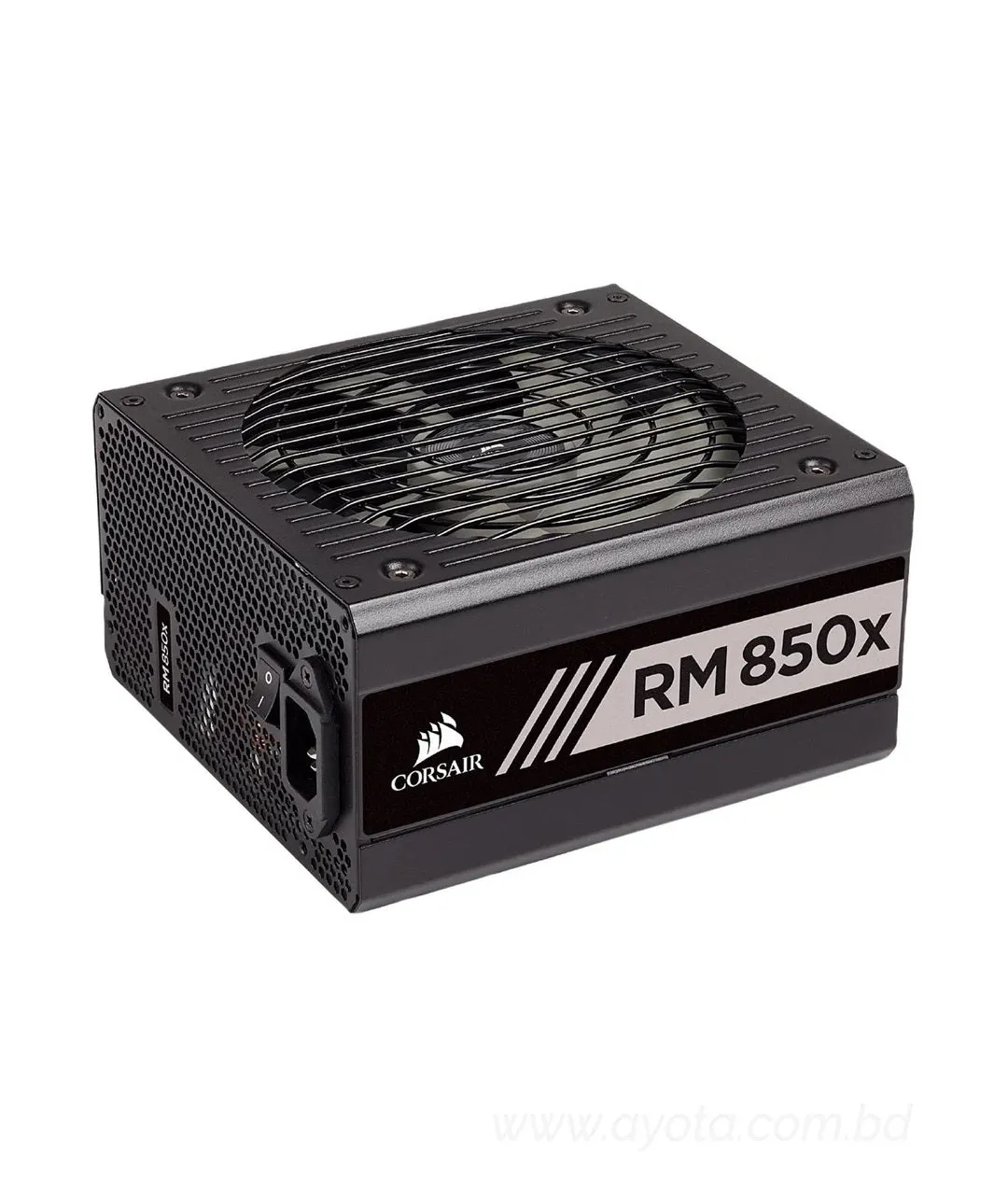

LEARN MORE ABOUT THE CORSAIR CP-9020180-NA

Details
Type	ATX12V / EPS12V
Maximum Power	850W
Fans	1 x 135mm Low Noise Fan
Main Connector	20 4Pin
12V Rails	Single
PCI-Express Connector	6 x 6 2-Pin
SATA Power Connector	10

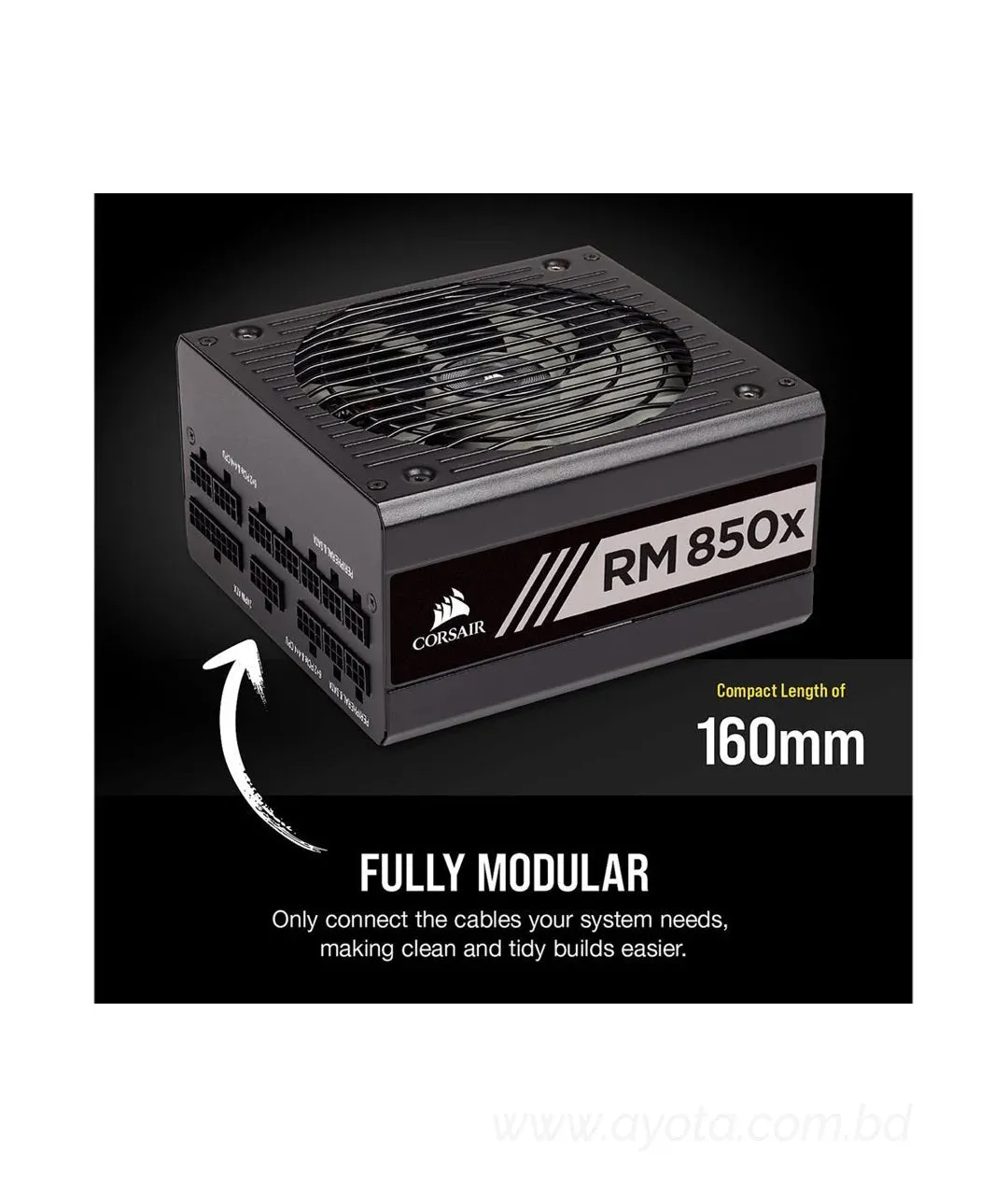

Modular	Full Modular
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	12A - 6A
Output	3.3V@25A, 5V@25A, [email protected], [email protected], 5VSB@3A
MTBF	100,000 hours

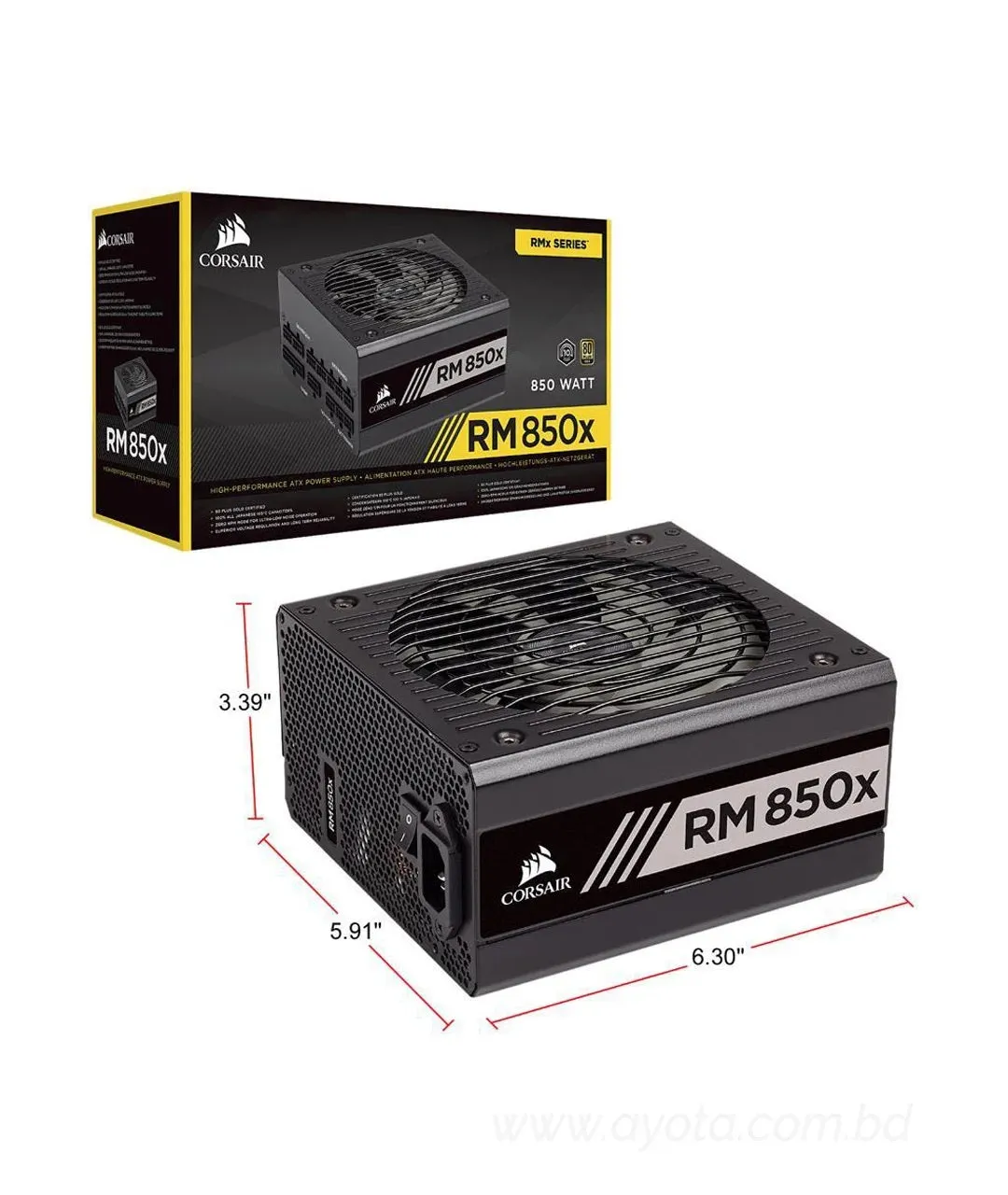

Dimensions	6.30" x 5.91" x 3.39"
Max PSU Length	160 mm
Weight	3.66 lbs.

Features
Connectors	1 x ATX 24-PIN (20 4) 2 x EPS/ATX12V 8-PIN (4 4) 6 x PCIe 8-PIN (6 2) 10 x SATA (3 SATA) 8 x PERIPHERAL (4-PIN) 1 x FLOPPY DRIVE ADAPTER (4-PIN)
Features	80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise and cooler temperatures. Tuned for Low Noise Operation: A specially set fan curve ensures that, even at full load, fan noise is kept to a minimum. Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation. 100% All Japanese 105°C Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability. Fully Modular Cables: Only connect the cables your system needs, making clean and tidy builds easier. Compact Size: A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.
Package Content	RMx Series ATX Power Supply Power cord Mounting screws Cable ties Corsair case badge User manual

Additional Information
Date First Available	January 11, 2019
