Product Details
＋
80 PLUS Gold certified for lower power consumption, less noise and cooler temperatures.

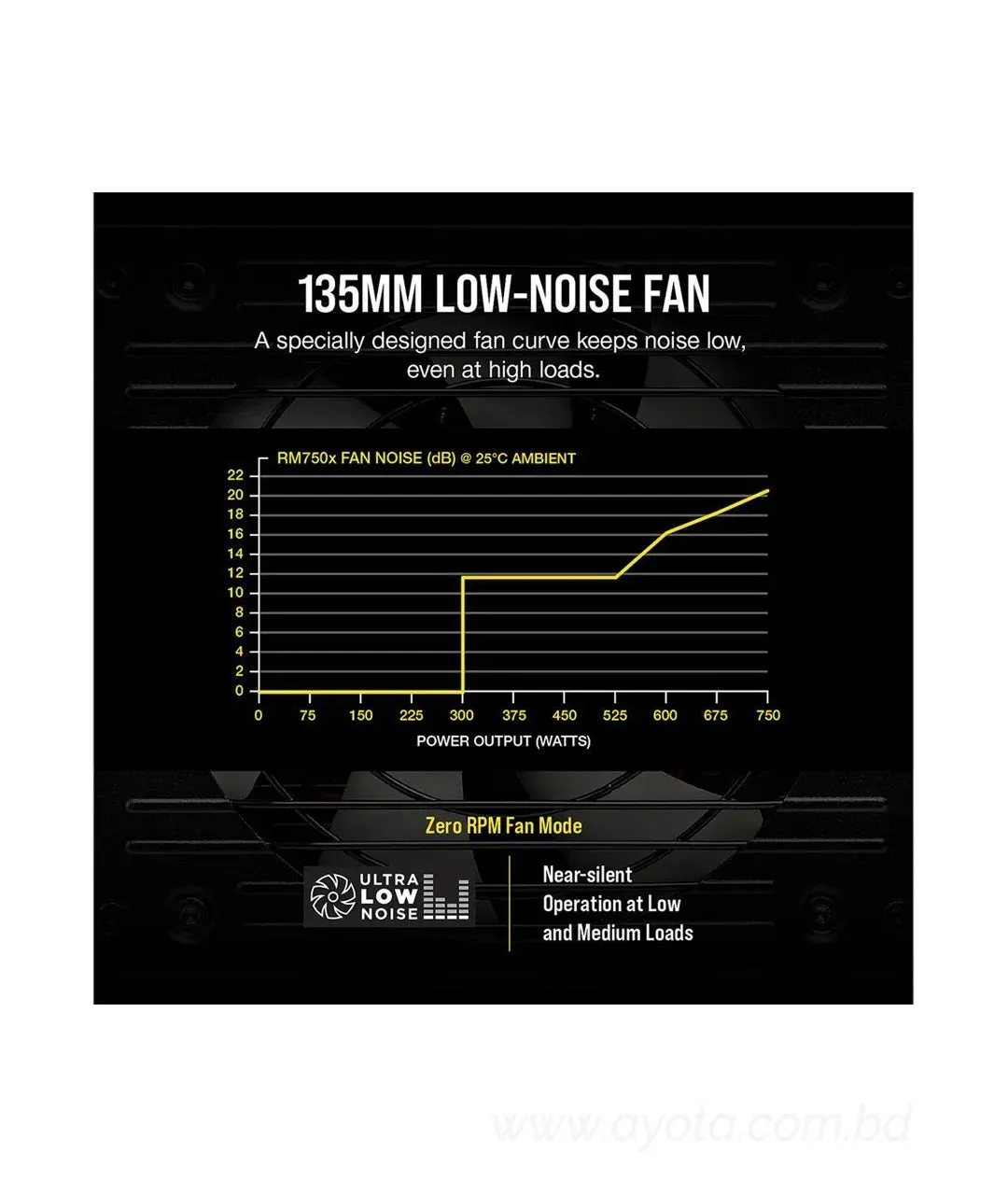

Tuned for low noise operation even at full load.
Zero RPM fan mode for near-silent operation at low to medium loads.
100% industrial-grade, 105°C rated Japanese capacitors ensure unwavering power and reliability.

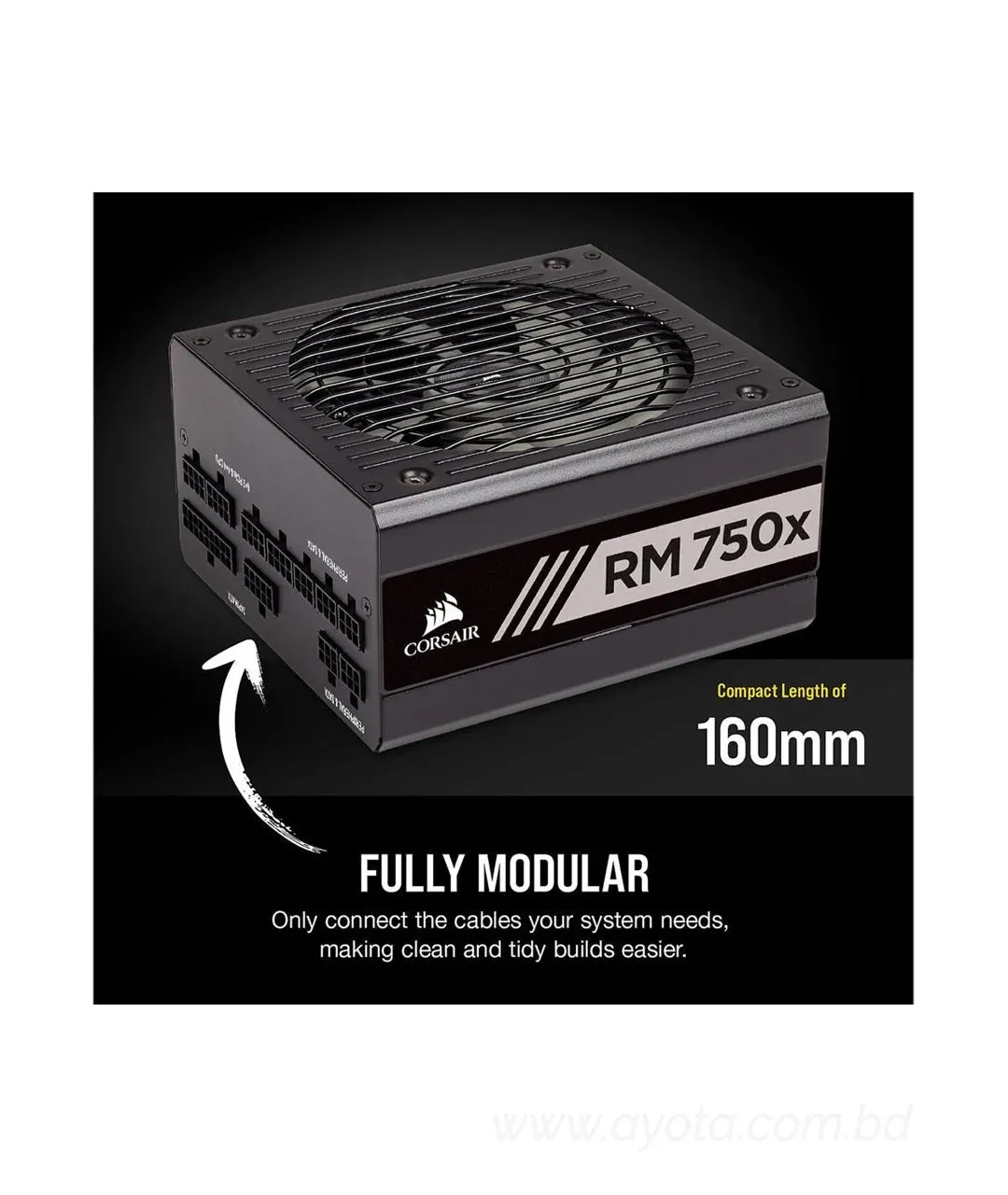

Fully modular cables, so you only connect the cables your system needs
Compact 160mm size for easier builds. (RM550x, RM650x, RM750x, RM850x)
Compact 180mm size for easier builds, (RM1000x)
Ten-year warranty for complete peace of mind.
LEARN MORE ABOUT THE CORSAIR CP-9020179-NA
| Brand | CORSAIR |
|---|---|
| Series | RMx Series RM750x |
| Model | CP-9020179-NA |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 750W |
| Fans | 1 x 135mm Rifle Bearing Fan |
| Main Connector | 20 4Pin |
| 12V Rails | Single |
| PCI-Express Connector | 4 x 6 2-Pin |
| SATA Power Connector | 9 |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A - 5A |
| Output | 3.3V@25A, 5V@25A, [email protected], [email protected], 5VSB@3A |
| MTBF | 100,000 hours |

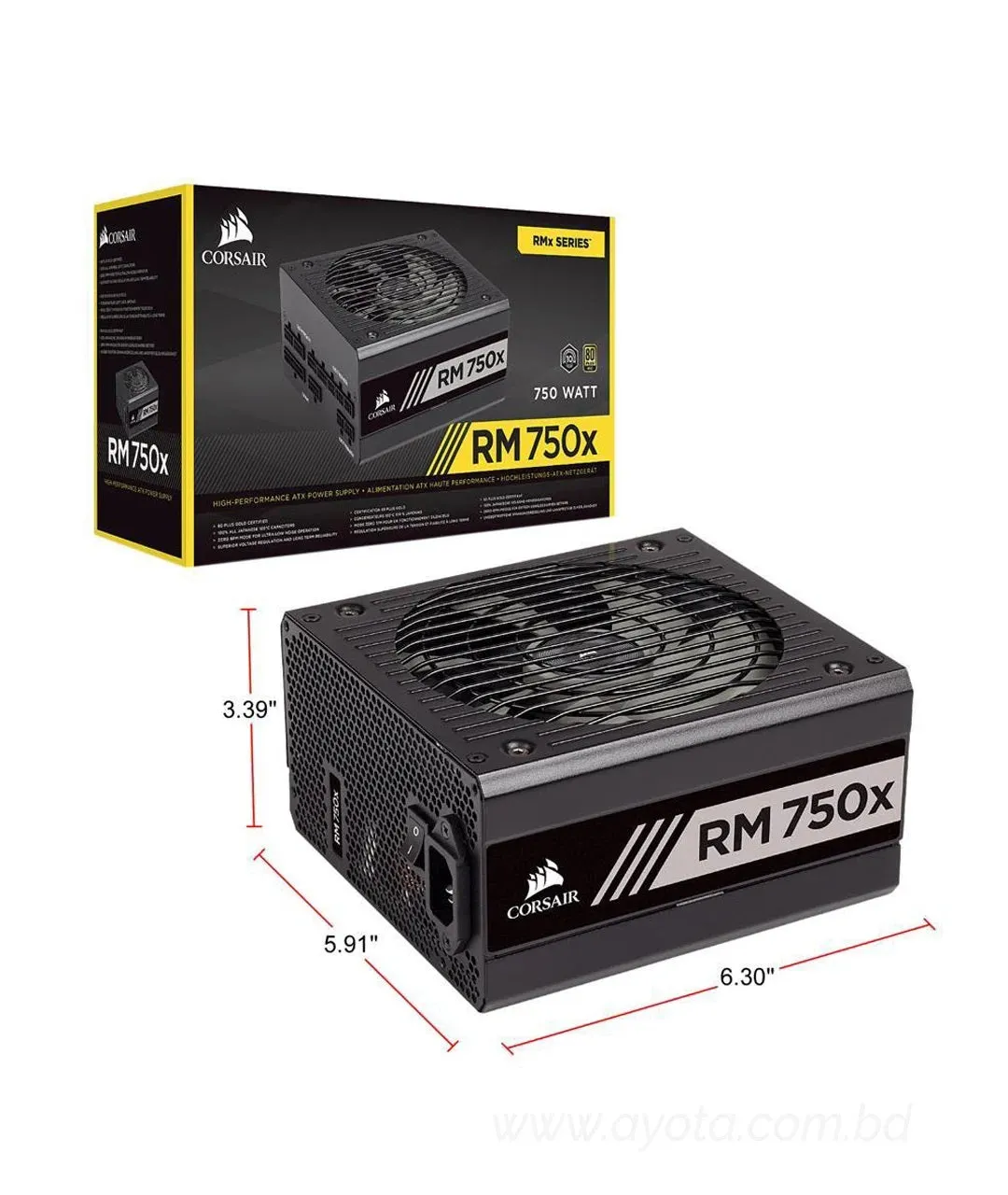

| Dimensions | 3.39" x 5.91" x 6.30" |
| Max PSU Length | 160 mm |
| Weight | 3.66 lbs. |

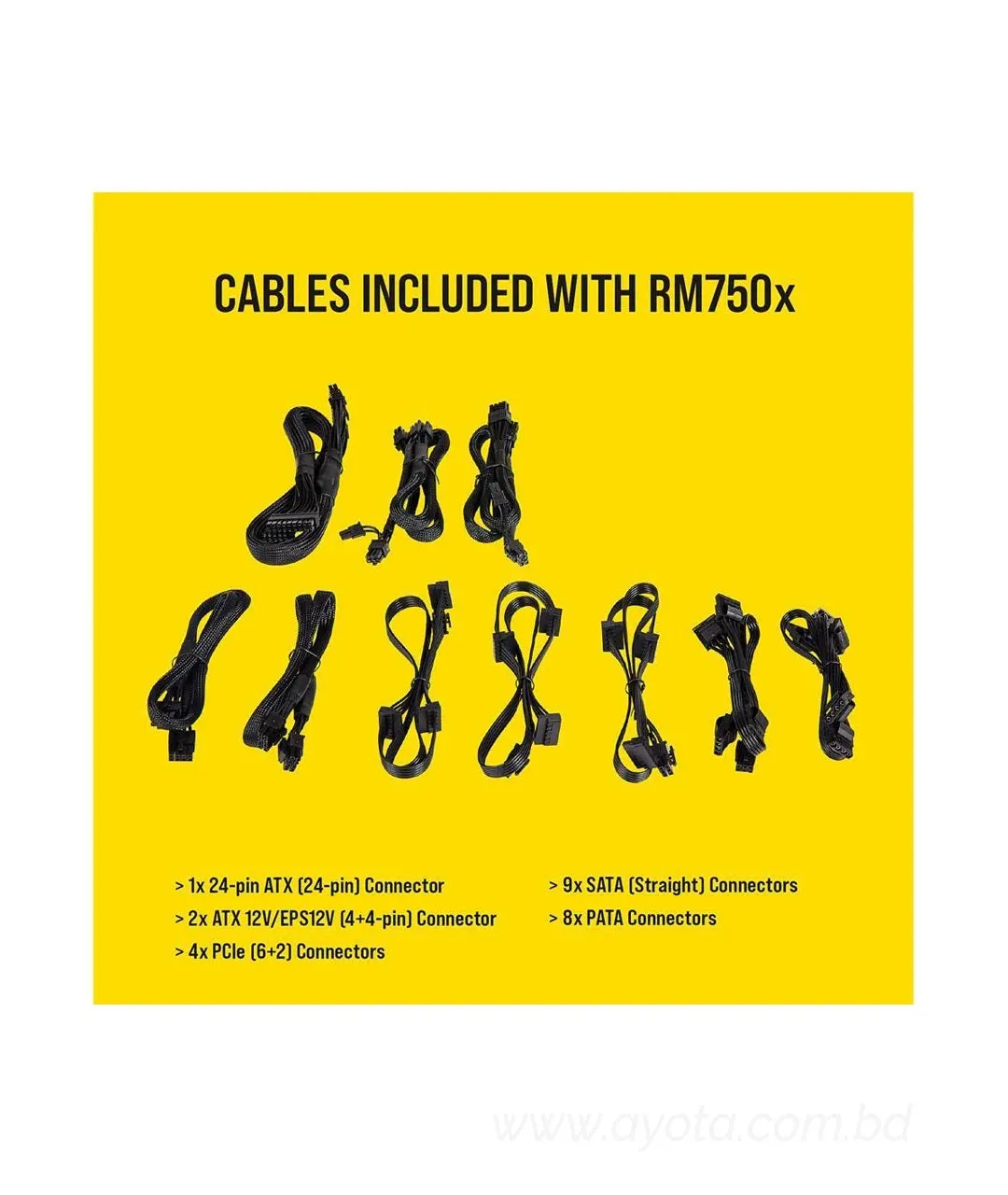

| Connectors | 1 x ATX 24-PIN (20 4) 2 x EPS/ATX12V 8-PIN (4 4) 4 x PCIe 8-PIN (6 2) (600mm, 150mm) 9 x SATA (3 SATA) (520mm, 115mm, 115mm) 8 x PERIPHERAL (4-PIN) (450mm, 100mm, 100mm, 100mm) 1 x FLOPPY DRIVE ADAPTER (4-PIN) |
|---|---|
| Features | 80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise and cooler temperatures. Tuned for Low Noise Operation: A specially set fan curve ensures that, even at full load, fan noise is kept to a minimum. Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation. 100% All Japanese 105°C Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability. Fully Modular Cables: Only connect the cables your system needs, making clean and tidy builds easier. Compact Size: A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds. |
| Package Content | RMx Series ATX Power Supply Power cord Mounting screws Cable ties Corsair case badge User manual |
| Date First Available | February 22, 2018 |
|---|
