Product Details
＋
bbDETAILS
Application / Suitable
| Priority for 3D Airplane, Large Jet & 1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro) |
Specifications
| Torque At 6.0V | 31.3 kg-cm / 434.8 oz-in |
| Torque At 7.4V | 37.8 kg-cm / 525.1 oz-in |
| Torque At 8.4V | 43.2 kg-cm / 600.1 oz-in |
| Speed At 6.0V | 0.10 sec / 60° |
| Speed At 7.4V | 0.08 sec / 60° |
| Speed At 8.4V | 0.07 sec / 60° |
Protection Mechanism
| Soft Start Protection | A soft start to a neutral position. |
| Over Voltage Protection | Over 9.0V drive the protection mode and 8.4V return to normal mode. |
| Low Voltage Protection | Lower than 4.0V, drive the protection mode and 4.5V return to normal mode. |
| Locked Rotor Protection | Stall in 5 sec, output torque goes down. |
| Temperature Protection | Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode. |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe) |
Standard Full Aluminum Servo
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：333Hz / Neutral：1520us |
| Dead Band Width | 0.001ms ( Default：1us) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | Titanium Alloy Gears |
| Motor | Premium Taiwan Brushless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 78.5 ± 1 grams / 2.77 oz |

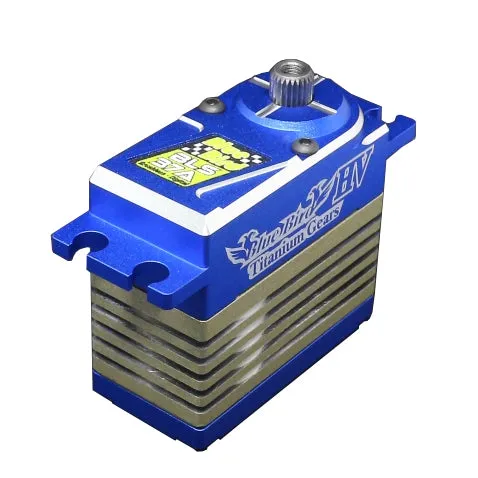

| Product Picture / Dimension Sketch | |
