Product Details
＋
Features

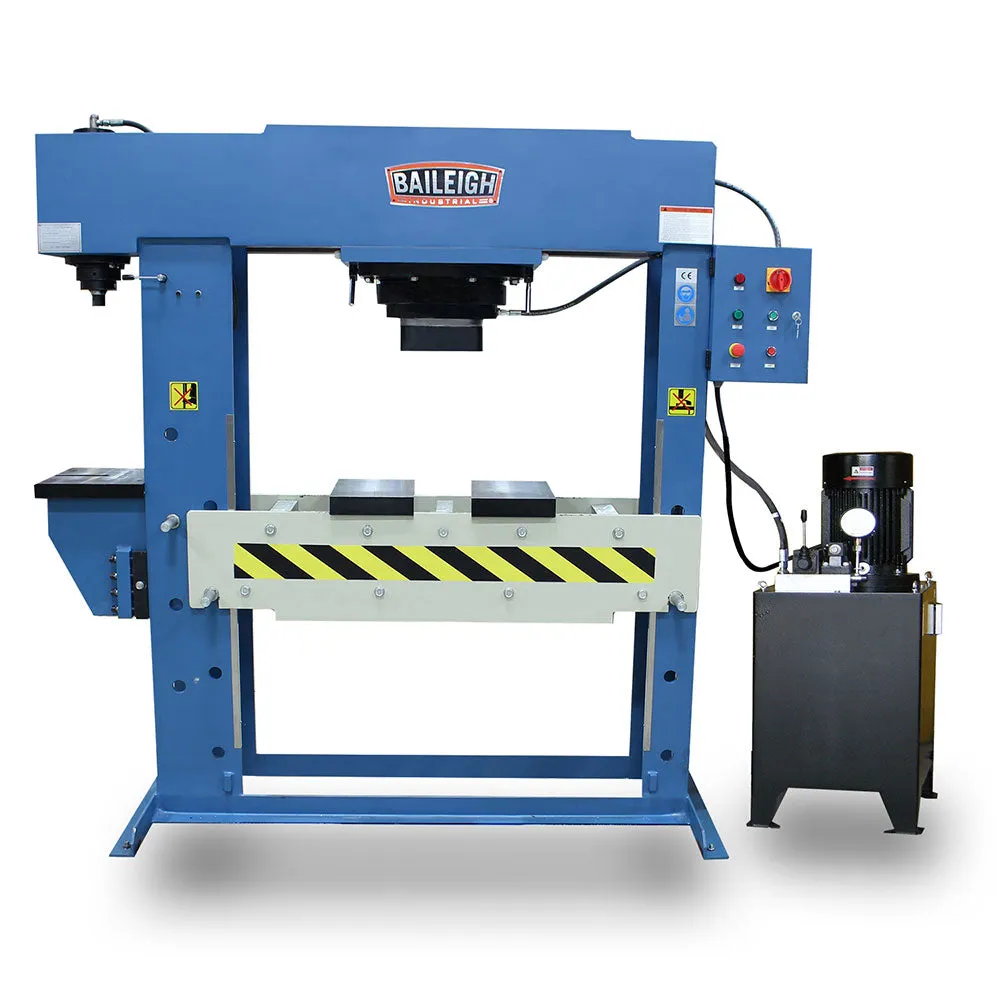

- Unique two station design.
- 200-ton capacity on main press.

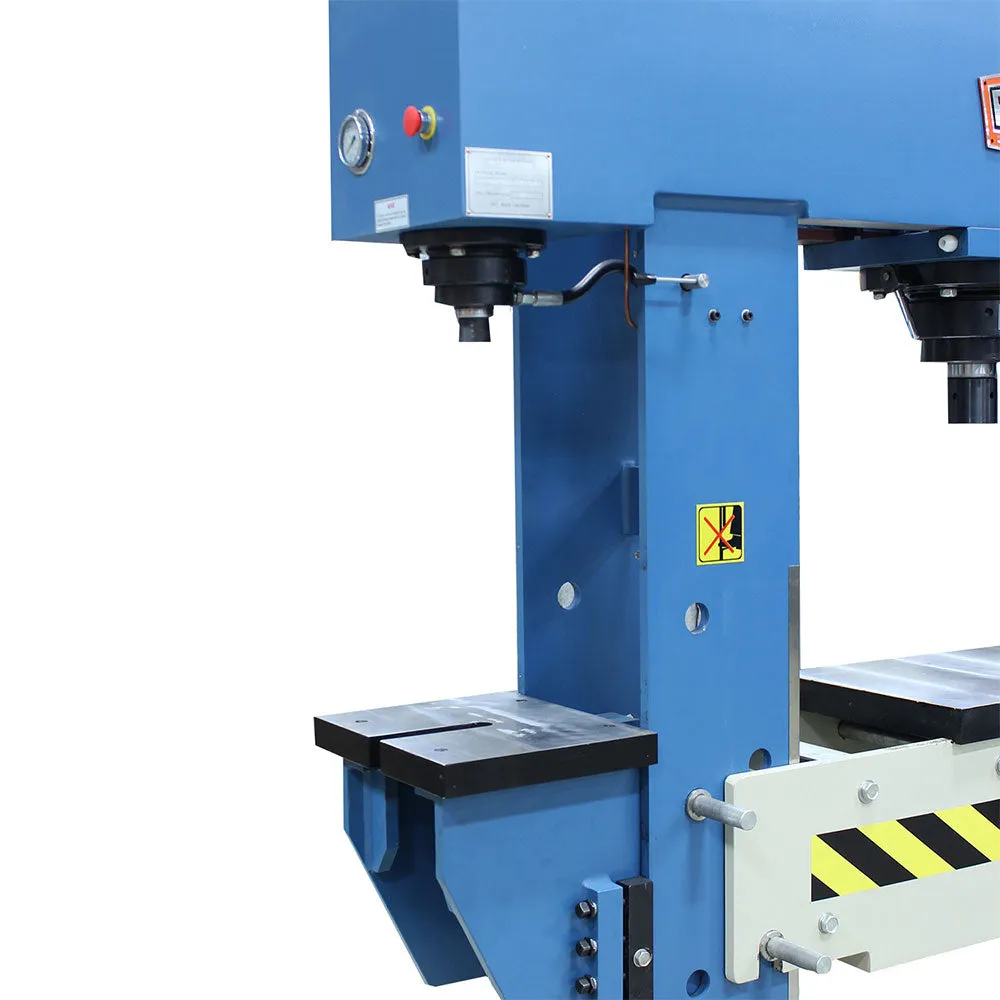

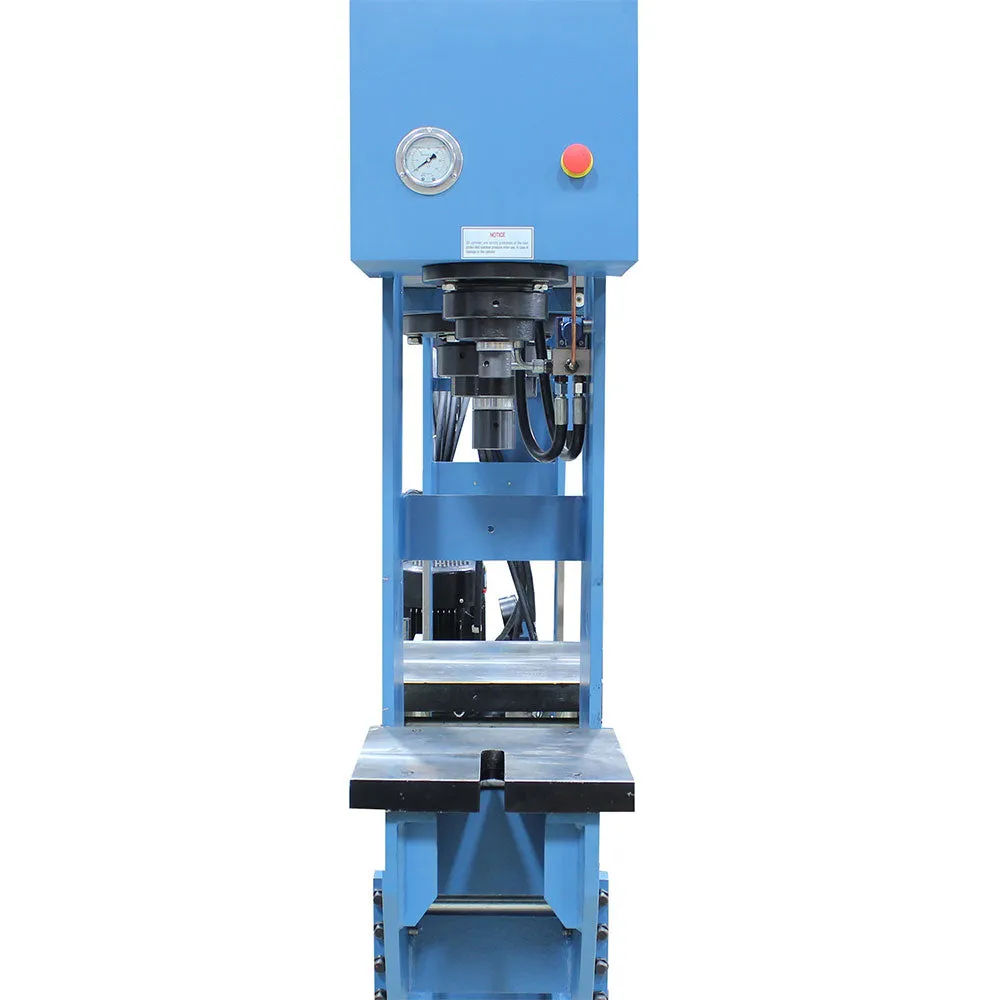

- 20-ton capacity on side press.
- 47” working width.
- 11”-diameter cylinder with 11.8” stroke.
- 10 hp motor runs on 220-volt 3-phase power.
- Stand-alone hydraulic system with a piston-style pump.
- Cylinder can move left and right within the frame, ideal for off-center projects.
- Pressure gauge comes standard.
- Includes a 2-piece V-block set.
- Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
What's in The Box
- HSP-200M-C - Two Station Hydraulic Press
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | HSP-200M-C |
| Power | 220 Volt Three Phase |
| Return Speed | .228" / sec. |
| Motor | 10 hp |
| Piston Head Diameter | 6.125" (Main), 1.77" (Side) |
| Pump Speed | 4 gal/min |
| Oil Capacity | 32 gal. |
| Included Accesories | Included Accesories |
| Working Speed | .154" / sec. |
| Working Width | 47" (Main) |
| Maximum Capacity | 200 ton (Main), 20 ton (Side) |
| Cylinder Stroke | 11.8" (Main), 11.75" (Side) |
| Cylinder Movable | Yes (Main Only) |
| Cylinder Diameter | 11" (Main), 3.95" (Side) |
| Distance From Table To Ram | Min. 8.11" - Max. 32.01" (Main), Min. 9.84" - Max. 38.97" (Side) |
| Shipping Dimensions (Inches) | 96x48x93 & 48x45x55 |
| Shipping Weight | 6910 lbs |
