Product Details
＋

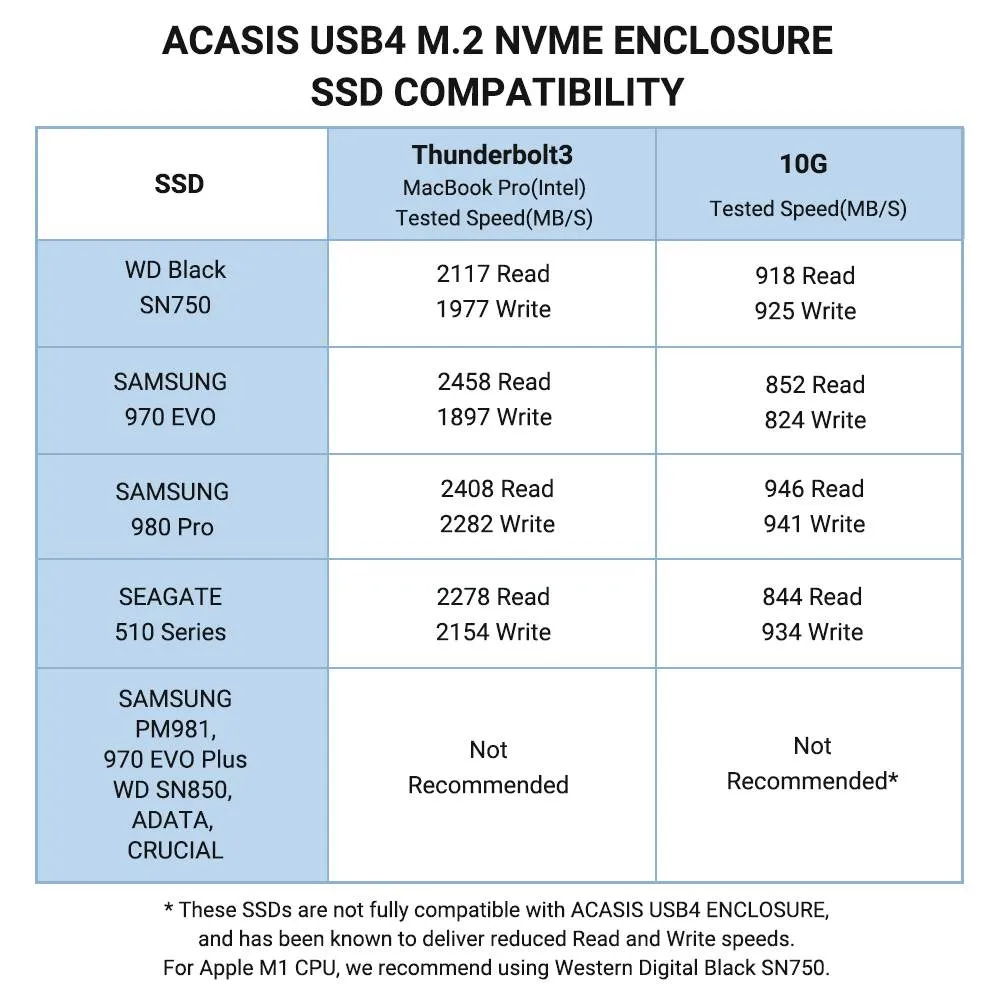

Not recommend SSD: Samsung 970 EVO plus / Samsung PM981 / ADATA

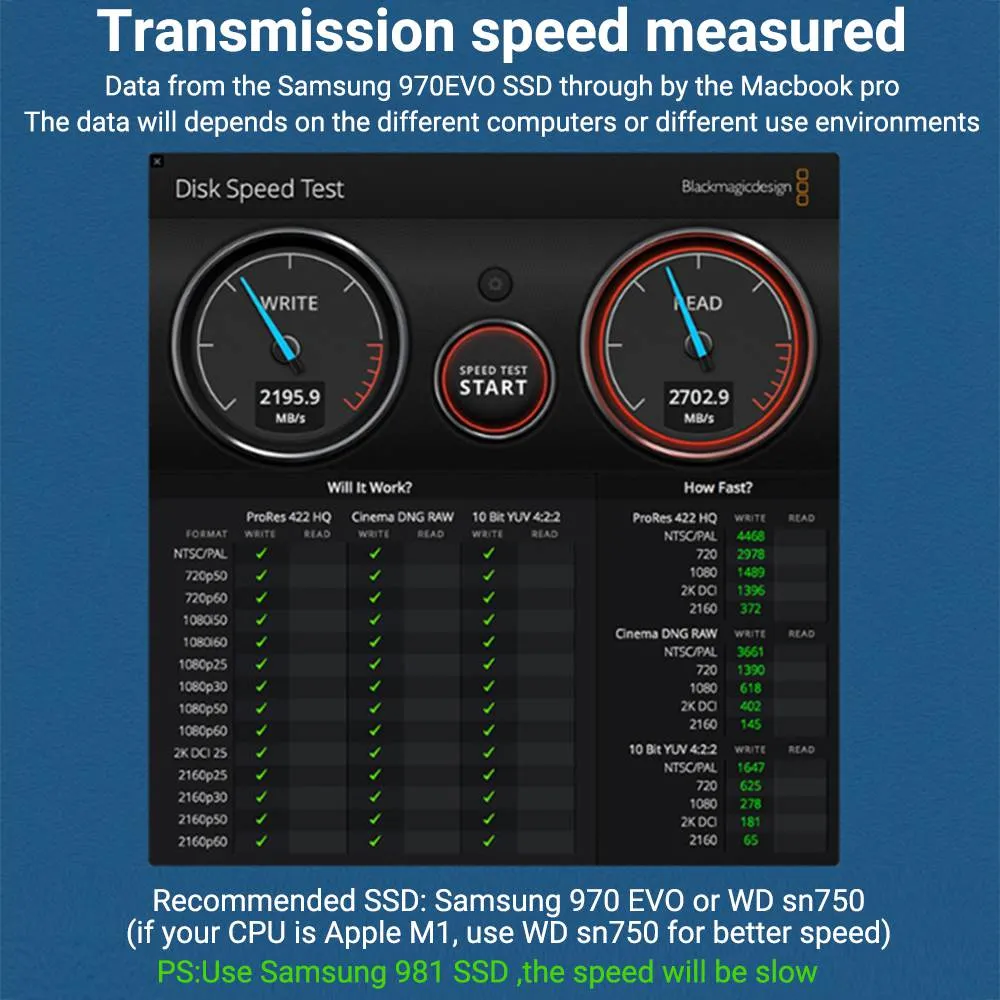

Recommended SSD: Samsung 970 EVO / Samsung 980 Pro / Samsung 990 Pro / SEAGATE 530
1.The computer MUST have thunderbolt 3/4 or USB 4 interface

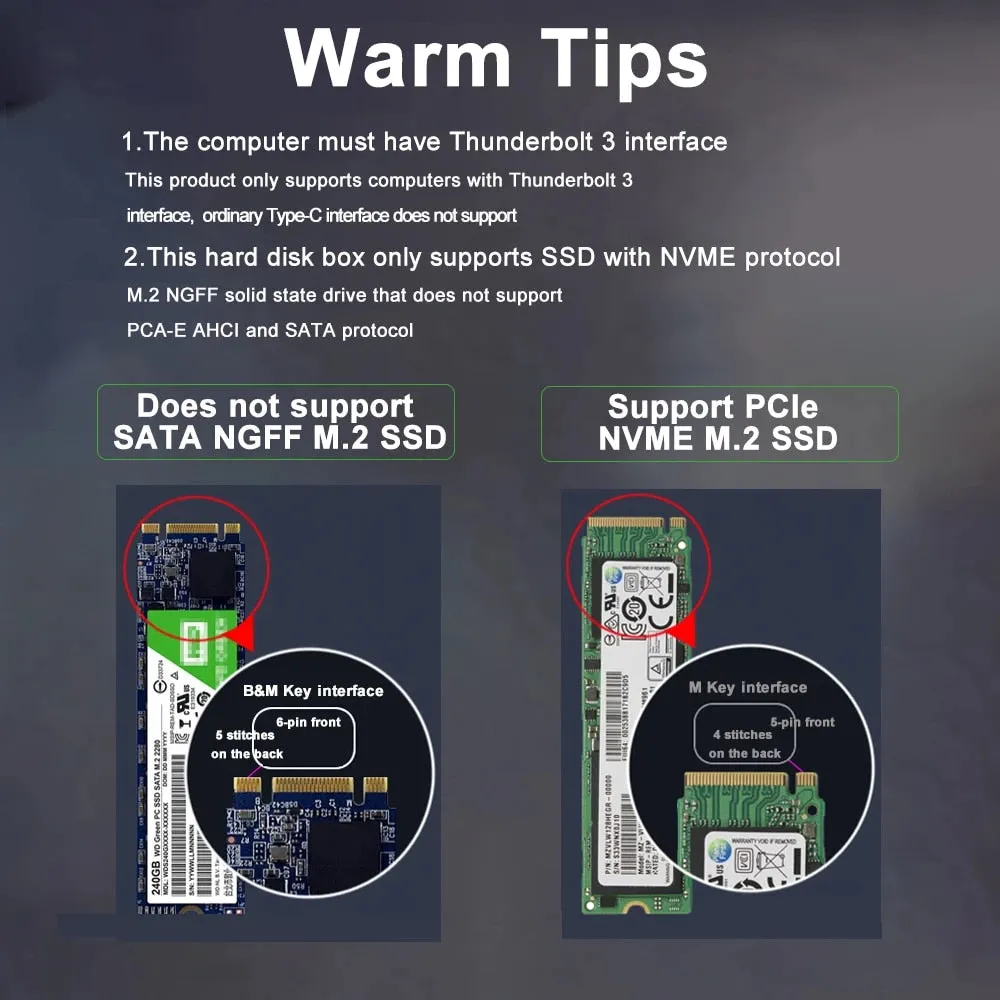

2.TB34 only supports 2280 M.2 NVMe SSD
|
|
|
|
|
||
|
Supported Bandwidth
|
40Gbps
|
40Gbps |
40Gbps
|
40Gbps
|
40Gbps
|
|
Compatible Protocol
|
Thunderbolt 4/3
USB4.0
|
Thunderbolt 4/3
USB4.0
|
Thunderbolt 4/3
USB4.0/3.2/3.1/3.0/2.0
|
Thunderbolt 4/3
USB4.0/3.2/3.1/3.0/2.0
|
Thunderbolt 4/3
USB4.0/3.2/3.1/3.0/2.0
|
|

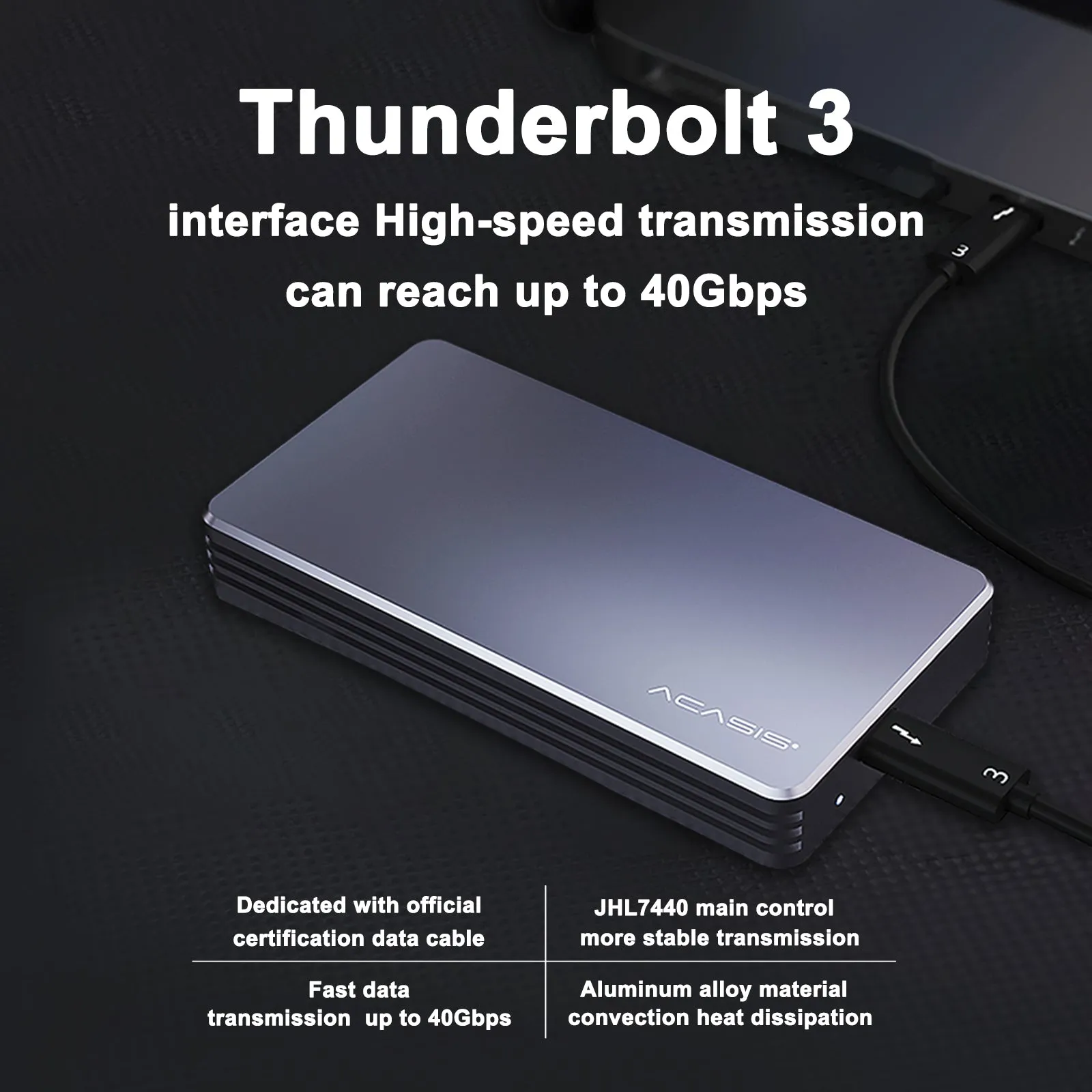

Chip
|
JHL7440
|
JHL7440 |
JHL7440/RTL9210B
|
JHL7440/RTL9210B
|
JHL7440/RTL9210B
|
|
Supported Hard Disk Protocols
|
NVMe
|
NVMe |
NVMe
|
NVMe
|
NVMe
|
|
Supported SSD Size
|
M Key & (M B) Key(2280)
|
M Key & (M B) Key(2280) |
M Key & (M B) Key(2280)
|
M Key & (M B) Key(2280)
|
M Key & (M B) Key(2280)
|
|
Supported SSD Capacity
|
8TB
|
8TB |
8TB
|
8TB
|
8TB
|
|

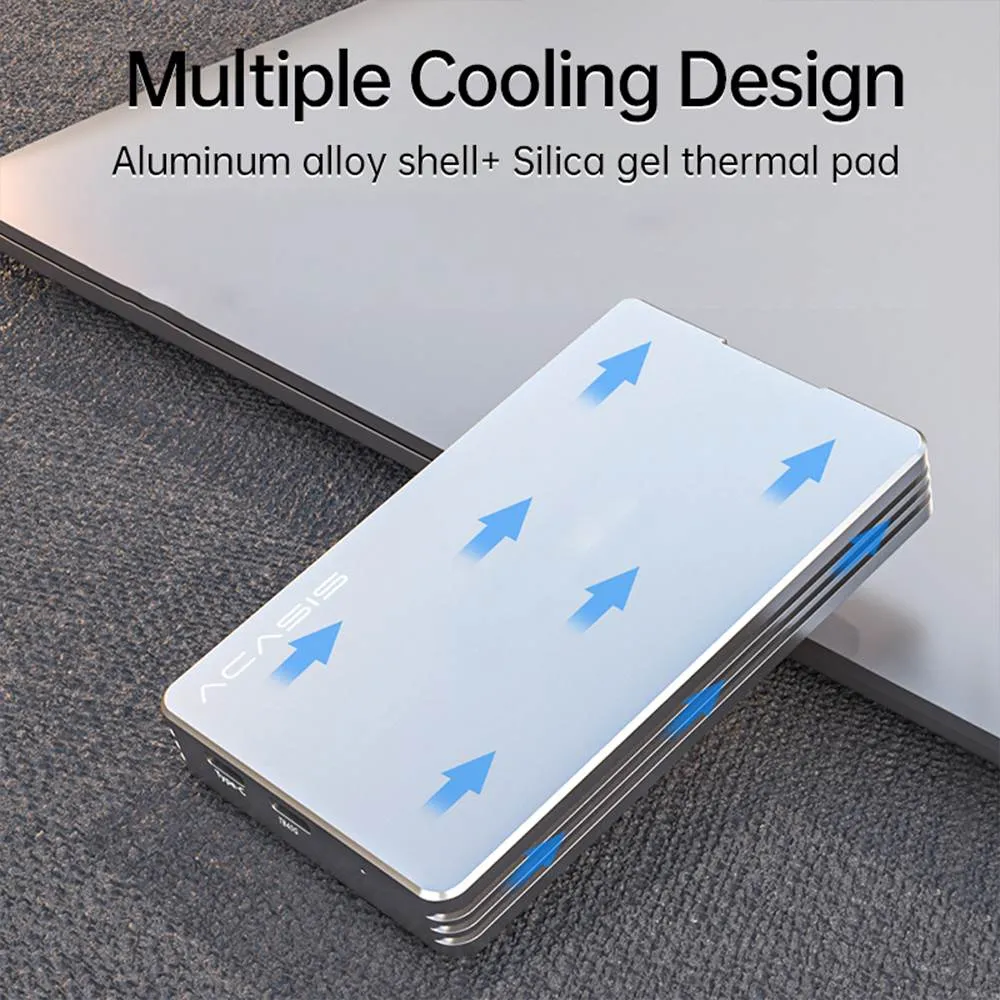

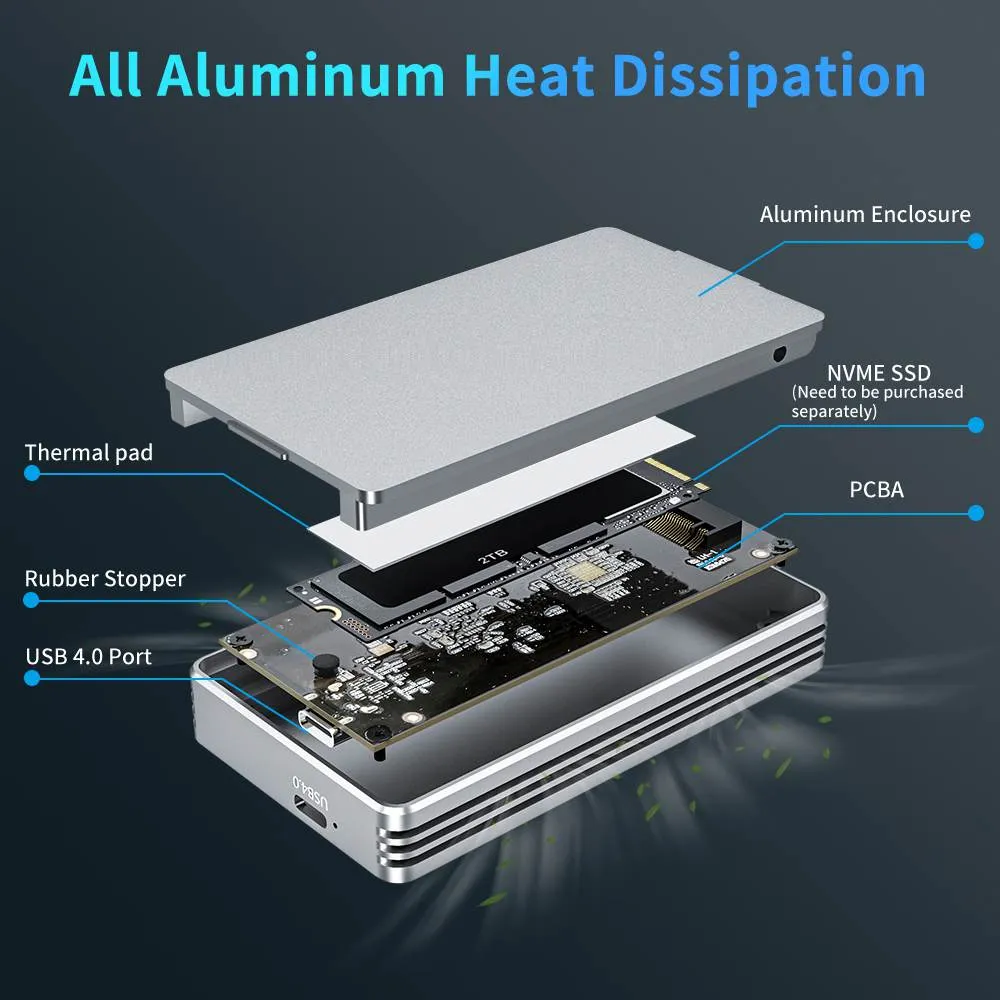

Heat Dissipation
|
Natural Cooling
|
Natural Cooling |
Natural Cooling
|
Natural Cooling
|
Built-in Cooling Fan
|
|
Material
|
Aluminum Alloy Shell
|
Aluminum Alloy Shell |
Aluminum Alloy Shell
|
Aluminum Alloy Shell
|
Aluminum Alloy Shell
|
|
Dimension
|
100*50*14mm
|
101*52*14mm |
101*53*15mm
|
101*53*15mm
|
118*57*18mm
|
|
Weight
|
106.5g
|
97g |
125g
|
97g
|
163.2g
|
|
Installation Method
|
Screw Fixed
|
Tool-Free |
Tool-Free
|
Screw Fixed/Tool-Free
|
Tool-Free
|
|
Clolor
|
Silver
|
Dark Grey |
Silver
|
Dark Grey/Light Grey
|
Dark Grey
|
